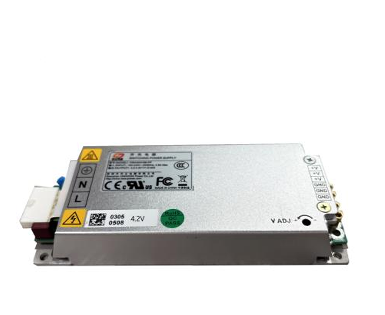

HWA404V2B-PP

HWA404V2B-PP is a High-efficiency power supply designed for LED display products, with a rated output of 4.2V / 40A.

~~Download~~ ~~Back to list~~

Product Feature

Small size：146mm*55mm*26mm(L*W*H)
Light weight : ≤310g
High efficiency：92%( Input :@220VAC，Output :4.2V/40A)
Small Leakage current：<1mA
Output voltage can be adjusted from 3.8V to 4.2V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rating, referring to fig. 1)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Cooling mode：conduction cooling
Output over-voltage protection
Output over-current protection
Output short-circuit protection
Over temperature protection
Compliance with CB,CE, FCC,UL,CCC certifications
