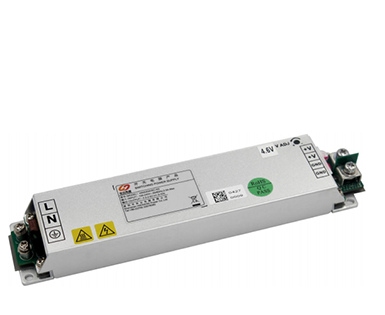

HWA454V6C-SS

HWA454V6C-SS is a High-efficiency power supply with a rated output of 4.6V/ 45 A, designed for LED display products. The power supply has a current sharing function and can be used in parallel.

~~Download~~ ~~Back to list~~

Product Feature

Small size：185.5mm*40.6mm*21mm(L*W*H)
Light weight : ≤280g
High efficiency：92%(@Input 220VAC,Output4.6V/45A)
Small Leakage current：<1mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ℃~ +70℃ linear de-rating, referring to fig. 1)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Cooling mode：conduction cooling
Output over-voltage protection
Output over-current protection
Output short-circuit protection
Over temperature protection
Compliance with UL, CE, FCC ,CB,CCC certifications
