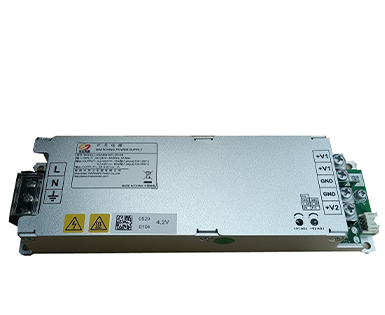

HWA804V6FL-SS

HWA804V6L-SP is a high-efficiency AC/DC power supply product specifically designed for LED display products, with a rated output of 4.6V/80A.

~~Download~~ ~~Back to list~~

product feature

The output has the parallel operation function, allowing multiple power supplies to be used in parallel.
It has a Power Good signal port, which can monitor the power supply status
Small size：185mm*55mm*28mm(L*W*H)
Light weight :≤450g
High efficiency：91%(@Input 230VAC,Output4.6V/80A)
Small Leakage current：<1mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50 ℃~ +70℃ linear de-rating)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Cooling mode：conduction cooling
Output over-voltage protection
Output over-current protection
Output short-circuit protection
Over temperature protection
Compliance with UL、CE、CCC、FCC、CB certifications
