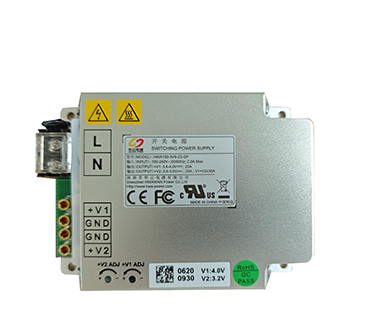

HWA150-3V6-2S-SP

HWA150-3V6-2S-SP is a High-efficiency power supply with dual outputs,Rated output:+V1:3.6V/20A，+V2:2.6V/15A,designed for LED display products.

~~Download~~ ~~Back to list~~

Product Feature

Small size：104mm*75mm*24mm(L*W*H)
Light weight : ≤220g
High efficiency：88%(@Input: 230VAC, Outputs: +V1:4.0V/20A，+V2:3.0V/15A)
Small Leakage current：<1mA
Output voltage +V2 can be adjusted from 2.6V to 3.0V (The voltage difference with +V1 should be no less than 1V)
+V1 maximum output current 20A, +V2 maximum output current 20A, +V1 +V2 total current ≤35A
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50℃ ~ +70℃ linear de-rated, referring to fig. 1)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Cooling mode：conduction cooling
Output over-voltage protection
Output over-current protection
Output short-circuit protection
Over temperature protection
Compliance with UL, CB ,FCC,CE certifications
