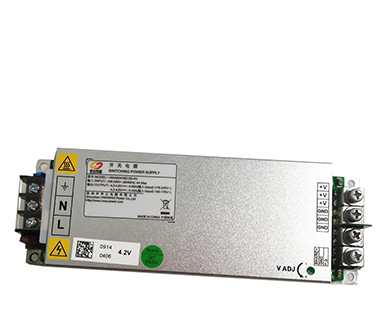

HWA604V6D-SS-HV

HWA604V6D-SS-HV is a High-efficiency power supply with a rated output of 4.6V / 60 A, designed for LED display products.

~~Download~~ ~~Back to list~~

Product Feature

Small size：167mm*55mm*26mm(L*W*H)
Light weight : ≤350g
High efficiency：91.5% Max(referring to fig .3)
Small Leakage current：<1mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rating, referring to fig. 1)
Wide Input voltage range：90VAC～264VAC(90 VAC to 176 VAC down to 40A, reference P fig. 1)
Power factor： ≥0.94
Cooling mode：conduction cooling
Output over-voltage protection
Output over-current protection
Output short-circuit protection
Over temperature protection
Compliance with CE,CCC certifications
