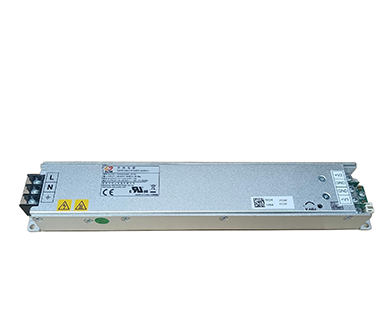

HWA903V8FC-2S-SS

HWA903V8FC-2S-SS is a High-efficiency power supply with dual outputs,Rated output:①3.8V/55A, 2.8V/35A,②3.8V/45A, 2.8V/45A,designed for LED display products. The power supply has a current sharing function and can be used in parallel.

~~Download~~ ~~Back to list~~

Product Feature

The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status of the power supply
Small size：260mm*46mm*26.3mm(L*W*H)
Light weight : ≤570g
High efficiency：89%(@Input: 230VAC, Outputs: full load )
Small Leakage current：<1mA
Output voltage +V2 can be adjusted from 2.6V to 3.0V (The voltage difference with +V1 should be no less than 1V)
Output voltage +V1 can be adjusted from 3.8V to 4.3V
Output voltage +V2 can be adjusted from 2.8V to 3.2V
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50℃ ~ +70℃ linear de-rated, referring to fig. 1)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Cooling mode：conduction cooling
Output over-voltage protection
Output over-current protection
Output short-circuit protection
Over temperature protection
Compliance with UL, CE,CB ,CCCcertifications
