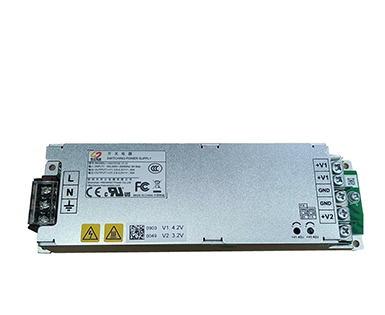

HWA903V8L-2S-SS

HWA903V8L-2S-SS is an AC / DC multiplex output，Rated output: +V1:4.0V/55A，+V2:3.0V/35A.

~~Download~~ ~~Back to list~~

Product Feature

Small size：185mm*55mm*28mm(L*W*H)
Light weight : ≤450g
High efficiency：90%(@Input: 230VAC, Outputs: full load )
Small Leakage current：<1.0mA
Output voltage +V1 can be adjusted from 3.8V to 4.3V
Output voltage +V2 can be adjusted from 2.8V to 3.2V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50℃ ~ +70℃ linear de-rated, referring to fig. 1)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Cooling mode：conduction cooling
Output over-voltage protection
Output over-current protection
Output short-circuit protection
Over temperature protection
Compliance with UL, CE, CCC, FCC,CBcertifications
