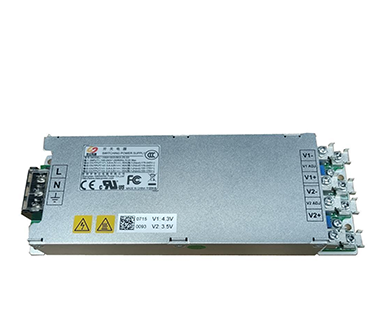

HWA1003V8KA-2S-SS

HWA1003V8KA-2S-SS is an AC / DC dual-channel output power supply,supports two output modes: common cocathode (V1+ separated from V2+, V1-is shorted with V2-) and coanode (V1+is shorted with V2+, V1- separated from V2-)；Rated output:V1:4.3V/60A，V2:3.8V/40A，designed for LED display products.

~~Download~~ ~~Back to list~~

Product Feature

Small size：185mm*63mm*28mm(L*W*H)
Light weight : ≤540g
High efficiency：92%(@Input: 230VAC, Outputs: full load )
Small Leakage current：<1mA
Output voltage +V1 can be adjusted from 3.8V to 4.3V
Output voltage +V2 can be adjusted from 3.4V to 3.8V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50℃ ~ +70℃ linear de-rated, referring to fig. 1)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Cooling mode：conduction cooling
Output over-voltage protection
Output over-current protection
Output short-circuit protection
Over temperature protection
Compliance with UL, CE, CCC, FCC,CB certifications
