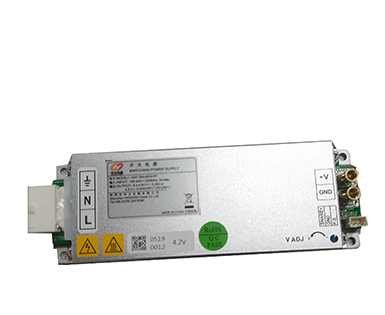

HWT-354V6FB-PP

HWT-354V6FB-PP is a High-efficiency power supply with a rated output of 4.6V / 35 A, designed for LED display products. The power supply has a current sharing function and can be used in parallel.

~~Download~~ ~~Back to list~~

Product Feature

The power supply has a current sharing function and can be used in parallel
The power supply has a Power Good signal which can be used to detect the operating status of the power supply
Small size：159mm*50mm*19mm(L*W*H)
Light weight : ≤210g
High efficiency：90%(@Input 230VAC,Output4.6V/35A)
Small Leakage current：<0.5mA
Output voltage can be adjusted from 4.2V to 4.6V
EMI standard: EN55032 CLASS B
Wide operating temp. range：-40～+70℃(+50 ℃~ +70℃ linear de-rating, referring to fig. 1)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Cooling mode：conduction cooling
Output over-voltage protection
Output over-current protection
Output short-circuit protection
Over temperature protection
Compliance with UL, CE, CCC, FCC、CB certifications
