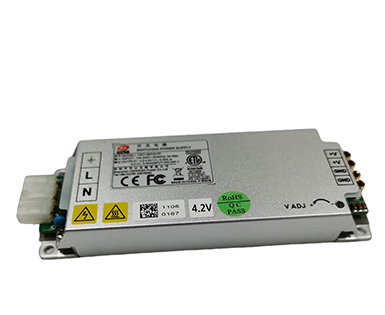

HWT-354V6-PP

HWT-354V6-PP is a High-efficiency power supply designed for LED display products, with a rated output of 4.6V / 35A. The power supply has a current sharing function and can be used in parallel.

~~Download~~ ~~Back to list~~

Product Feature

Small size：137mm*50mm*19mm(L*W*H)
Light weight : ≤210g
High efficiency：92%( Input :@230VAC，Output :4.6V/35A)
Small Leakage current：<1mA(typ.@240VAC)
Output voltage can be adjusted from 4.2V to 4.6V
Input voltage 200VAC~240VAC, output 4.2V/40A
EMI standard: EN55032 CLASS A
Wide operating temp. range：-40～+70℃(+50 ° C ~ +70 ° C linear de-rating, referring to fig. 1)
Wide Input voltage range：90VAC～264VAC
Power factor： ≥0.95
Cooling mode：conduction cooling
Output over-voltage protection
Output over-current protection
Output short-circuit protection
Over temperature protection
Compliance with ETL,CB, CE, FCC，CCC，UL certifications
